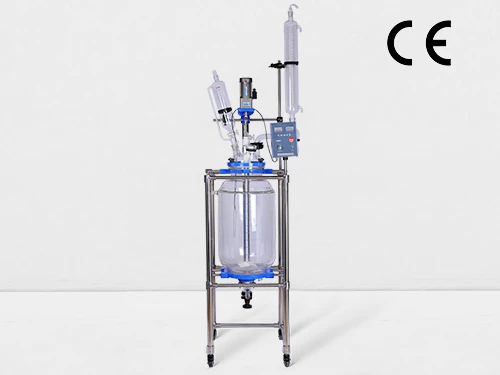

S series Jacketed Glass Reactor
According to the customer's requirements and standard, we manufacture frequency control speed jacketed glass reactor which has many functions to satisfy kinds of experiments. That is, We innovate to assemble rectification column and create jacketed glass reactor production line.
| Send an E-mail to us! | |
Follow Us:
|
|
 ( Click this button to inquiry ) |
|
PRODUCTS
- Glass Reactor Series
- Rotary Evaporator Series
- Water Vacuum Pump Series
- High and Low Temperature Cycling
- Cooling Liquid Circulating Pump Series
- Circulating Water or Oil Bath Series
- Drying Oven
- Hydrothermal Synthesis Reactor
- Microwave Chemical Reactor
- High Pressure Reactor Series
- Short Path Distillation
- Heating Mantle
- Spray Dryer
- Solvent Recovery Machine
- Stainless Steel Reactor
- Other
- Emulsifying Mixer Machine
Whatsapp:+8615036470528
E-mail: [email protected]
Address: 19/F, Block B, Guohong Mansion, Northeast corner of the intersection of Huagong Road and Lamei Street, Hi-Tech Development Zone, Zhengzhou City, Henan Province, China
Performance principle：
Double-glazed designed glass reactor, the liner is for reaction solvent, and the jacket for heating or cooling resource(cool liquid,hot water or hot oil), to achieve circulating heating or cooling experiment. And its ancillary equipment-High and low temperature machine which can satisfy functional high & low temp reaction experiments.
Features：
1. GG17 high-borosilicate glass with nice physical-chemical properties; experiment temperature -100 to 400 degree C; Resistant to strong acidic properties of materials; only touching with glass parts & PTFE, no cross-contamination.

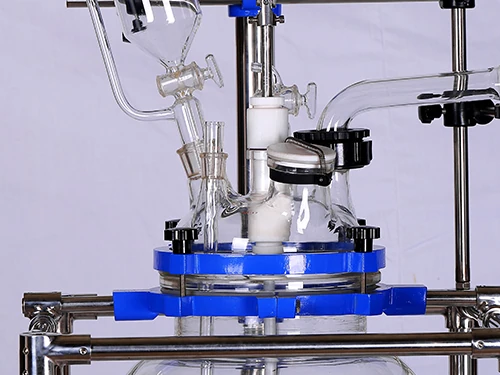

2.Double cylinder; kettle cover is separated from kettle body. It is convenient to disassemble, clean and install.

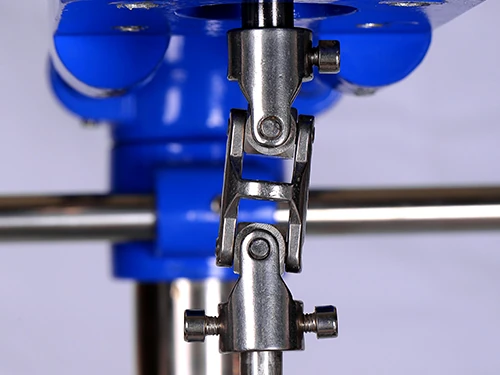

3.Stirring adopts to mechanical sealing, it keeps higher vacuum degree among the same products in the market. It also keeps high vacuum degree when stirring.

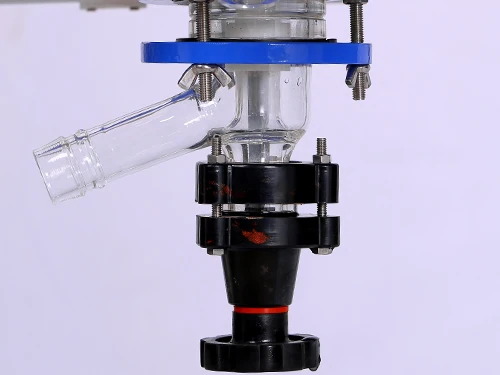

4.Glass(PTFE)discharge valve, non-dead angle mixing, fast emptying, no residue.
5. Frequency control speed gear motor, smooth running，high torque, automatic booster, no spark, noise free, long life.
6.SUS frame and cast aluminum material kettle body support, elegant appearance, stable structure.
7.Circulating water/oil bath, high and low temperature machine can supply heating source; Cooling machine:cooling chiller，high and low temperature machine，convenient and practical .
8.Scientific & innovative structure, practical, elegant appearance,domestic industry-leading.
| Model | S-1L | S-2L | S-3L | S-5L | S-10L | S-20L | S-30L | S-50L | S-100L |
| Power Supply | 220V/50HZ 110V/60HZ | ||||||||
| Stirring Power(W) | 60 | 120 | 180 | ||||||
| Stirring Shaft Diameter(mm) | 12 | 14 | 16 | 18 | |||||
| Stirring Speed(rpm) | 0~600 (Max. 1300) | ||||||||
| Torque(g/m) | 2000 | 2400 | 4800 | 1000 | 1200 | 1500 | 3000 | ||
| Capacity(L) | 1 | 2 | 3 | 5 | 10 | 20 | 30 | 50 | 100 |
| Discharge Method | Discharge from bottom, glass discharge valve | ||||||||
| Explosion-proof | Optional | ||||||||
| Note | Floor type | 304 all stainless steel frame | |||||||
Ancillary equipment:
Circulating water vacuum pump:To provide a vacuum source
Cool chiller:low temperature reaction and Re-flux, condensation
Circulating water/oil bath:Thermal power
High and low temperature machine: high and low temperature experiment reaction
Notes:
1.Keep every glass part clean before installation.
2.Each standard port, milling mouth and sealing surfaces should be coated with a small amount of vacuum grease, to keep good sealig
3.Please read the manual carefully before installation,use, maintenance.
4.Your voltage should be in consistent with the provisions of this instrument.
5.No load is not suitable for high speeds.
6.The ambient temperature and humidity have big effects on the the electrical box life. Please keep the governor and motor dry.
7.The installation and use should be operated by professional operators.
