Overview

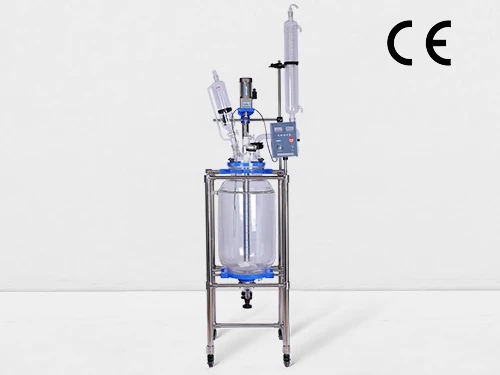

According to the customer's requirements and standard, we manufacture frequency control speed glass reactor which has many functions to satisfy kinds of experiments. That is, We innovate to assemble rectification column and create jacketed glass reactor production line.
It is widely used in modern refined chemical, biological pharmacy, new material synthesis industry research experiment,etc. OEM is also welcomed. We have rich experience in OEM.
Features
1.GG17 high-borosilicate glass with nice physical-chemical properties; experiment temperature -100 to 400 degree C; Resistant to strong acidic properties of materials; only touching with glass parts & PTFE, no cross-contamination.

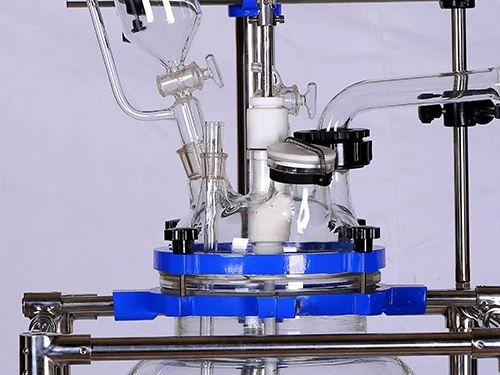

2.Double cylinder; kettle cover is separated from kettle body. It is convenient to disassemble, clean and install.

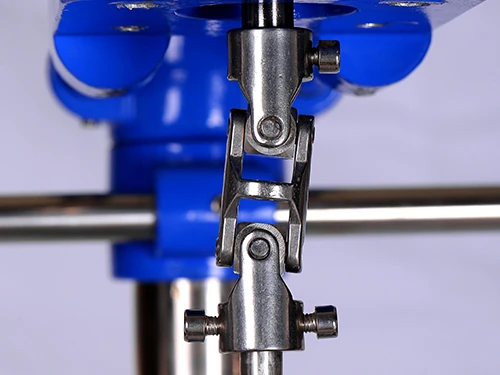

3.Stirring adopts to mechanical sealing, it keeps higher vacuum degree among the same products in the market. It also keeps high vacuum degree when stirring.

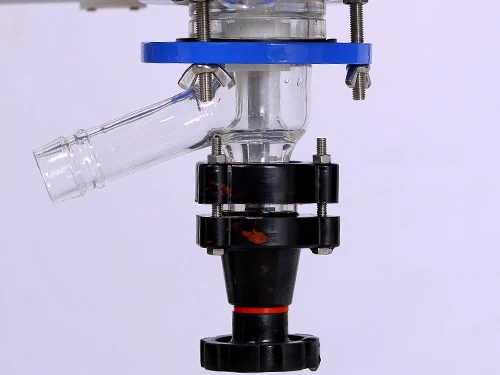

4.Glass(PTFE)discharge valve, non-dead angle mixing, fast emptying, no residue.
5. Frequency control speed gear motor, smooth running，high torque, automatic booster, no spark, noise free, long life.
6.SUS frame and cast aluminum material kettle body support, elegant appearance, stable structure.
7.Circulating water/oil bath, high and low temperature machine can supply heating source; Cooling machine:cooling chiller，high and low temperature machine，convenient and practical
8.Scientific & innovative structure, practical, elegant appearance, domestic industry-leading.
9.Explosion proof is optional.
Specifications
Main technical datas:
| Model | (EX)S-50L |
| Power supply | AC220V |
| Stirring power(W ) | 120 1/3 Gear Motor |
| Rotary speed(rpm) | 0~600 |
| Torque(g/cm) | 1500 |
| Capacity(L) | 50 |
| Discharge method | Discharge from bottom, discharge valve |
Detailed technical datas:
| Model | S-50 |
| Shaft diameter | 16mm |
| Stirring neck (flange) | Φ33mm 50mm |
| Thermometer (taper) | 24#*Φ34 |
| Inlet/outlet volume gas (taper) | 34#*Φ45 |
| Solid feeding neck (flange) | Φ60mm 80mm |
| Condensing neck (1-5taper10-100round) | 50#*Φ60 |
| Liquid feeding neck（taper） | Φ40mm 50mm |
| Bottom discharge neck（flange） | Glass Φ30mm 70mm |
| Jacket liquid Inlet/Outlet | Φ12mm 24mm |
| Stirrer length,diameter,weight | 1000mm Φ210mm 1.4kg |
| Thermowell length,diameter,weight | 615mm Φ15mm 0.1kg |
| Stirring seal (heitht,diameter,weight, ) | 190mm Φ50mm 0.55kg |
| Funnel (height diameter,weight,) | 555mm Φ95mm 1kg |
| Condenser (length,diameter,weight) | 830mm Φ100mm 2.5kg |
| Glass Bottom discharge | 230mm Φ170mm |
