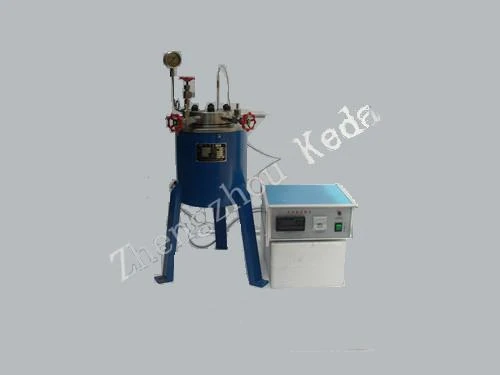

Lab High Pressure Vessel with Reasonable Price

Lab High Pressure Vessel with Reasonable Price,the servo motor-driven external magnet rotate, magnets through the magnetic field lines, mixing shaft and impeller drive magnet, rotating, in order to ensure normal magnetic coupled mixer runs smoothly. Magnetic coupling half is equipped with cooling water lot, between each power must be in the cooling jacket into the cooling water to reduce the temperature, ensure magnetic coupling Blender not demagnetization of magnetic material, magnetic stirrer water nozzle into the water, mouth water from the top of the water mouth.

INQUIRY ↗Email

Overview

Lab High Pressure Vessel with Reasonable Price,FCF series lab magnetic stirred autoclave is a stirring and reacting device, which is used for kinds of chemical materiasl

which are Gas-liquid, liquid-liquid, liquid-solid or gas-liquid-solid three-phase to react and stir fully under the high pressure,

vacuum, high temperature, up to strength mass and heat transfer process.

Static sealing structure, magnetic coupling connection between the agitator and motor drive. Static seal instead of

dynamic seals, and thoroughly mixing exchange leakage, the entire media and mixing the components to work

completely in the state of absolute seal.

Features

Feature:

(1)Static sealing structure

(2)The mixer bath electrical machinery transmission uses the magnetic force couple connection.

(3)No-touch passing moment, solving the stirred leak problem.

(4)Medium and the stirring member is in sealing state to work.

Specifications

Main technical data:

Capacity

Setting pressure

Setting temperature

Accuracy of temperature control

Stirring torque

Heating power

Material

Model

(L)

(Mpa)

(℃)

(N.cm)

(kw)

CJF-0.05

0.05

350

±1

120

0.6

1Gr18Ni9Ti

CJF-0.1

0.1

0.6

CJF-0.25

0.25

0.8

CJF-0.5

0.5

1.5

CJF-1

1.5

CJF-2

CJF-3

2.5

CJF-5

CJF-10
