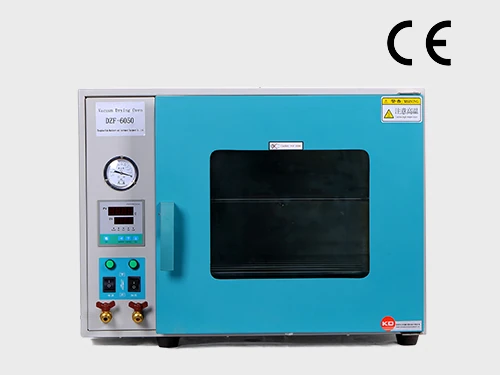

DZF Series Vacuum Drying Oven
It applies in drying, sterilizing and heat treatment of articles under the relative vacuum condition in laboratories of industrial mining enterprise, colleges and universities, scientific research institutes and medicine and health units, etc
| Send an E-mail to us! | |
Follow Us:
|
|
 ( Click this button to inquiry ) |
|
PRODUCTS
- Glass Reactor Series
- Rotary Evaporator Series
- Water Vacuum Pump Series
- High and Low Temperature Cycling
- Cooling Liquid Circulating Pump Series
- Circulating Water or Oil Bath Series
- Drying Oven
- Hydrothermal Synthesis Reactor
- Microwave Chemical Reactor
- High Pressure Reactor Series
- Short Path Distillation
- Heating Mantle
- Spray Dryer
- Solvent Recovery Machine
- Stainless Steel Reactor
- Other
- Emulsifying Mixer Machine
Whatsapp:+8615036470528
E-mail: [email protected]
Address: 19/F, Block B, Guohong Mansion, Northeast corner of the intersection of Huagong Road and Lamei Street, Hi-Tech Development Zone, Zhengzhou City, Henan Province, China
Application：
The new generation laboratory vacuum oven ,collects our company years' successful experiment in the oven body heating ,through painstaking research,break through the traditional thechnique to creat solution in the heat conduction process "bottleneck"--find the perfect way to heat.
Laboratory vacuum oven applies in drying ,sterilizing and heating treatment of articles under the relative vacuum condition in laboratories of industrial mining enterprise,colleges and universities,scientfic research instiutes and medicine and health units,etc.
Characteristics：
1.The working room adopts high quality and imported stainless steel or cold-rolled steel plate with corrosion
resistant. It is durable.
2.The air-tightness of the chamber door is adjustable, with a wholly-shaped silicon rubber door sealing loop; so as
to guarantee in-chamber high vacuum.
3.Double-layer tempering bulletproof glass door is easy to observe the articles in the working room.
4.The rectangular working room makes full use of effective volume.

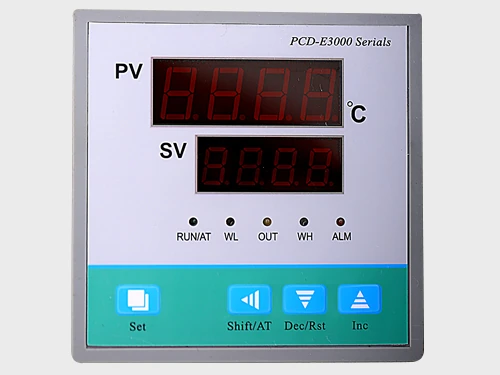

5.Microcomputer control DD (Digital display) instrument with functions of high precision on temperature control,
over-temperature alarm and automatic cutout.
Main technical data:
| Model | DZF-6010 | DZF-6020 | DZF-6050 | DZF-6090 | DZF-6210 | DZF-6500 |
| Power Supply | 220V/50HZ | |||||
| Shell Material | Spray-paint Anti-corrosion | |||||
| Liner Material | 304 Stainless Steel | |||||
| Temp. Range | RT+10~200°C | |||||
|
Max. Vacuum Degree |
0.098 Mpa | |||||
| Temp. Stability | ±1.0°C | |||||
| Temp. Analysis | 0.1°C | |||||
| Working Temp. | +5~40°C | |||||
| Input Power (W) | 400 | 800 | 1400 | 2000 | 2400 | 2800 |
|
Chamber Capacity (L) |
8 | 25 | 55 | 90 | 215 | 215 |
|
Inner (W*D*H,mm) |
200*200*200 | 300*280*300 | 410*400*340 | 450*450*450 | 560*600*640 | 630*810*845 |
|
Overall (W*D*H,mm) |
600*400*430 | 620*500*480 | 720*570*540 | 770*620*710 | 730*730*1800 | 790*1030*1850 |
| Shelves (Pcs) | 1 | 2 | 3 | 4 | ||
