Overview

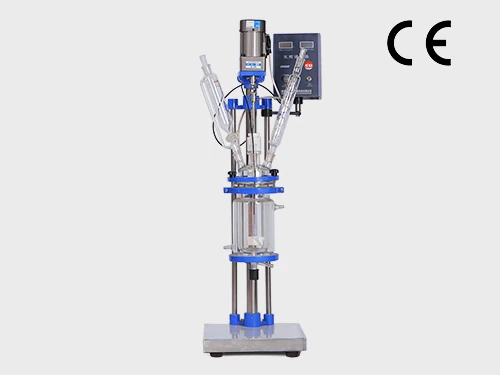

According to the customer's requirements and standard, we manufacture frequency control speed jacketed glass reactor which has many functions to satisfy kinds of experiments. That is, We innovate to assemble rectification column and create jacketed glass reactor production line. It is widely used in modern refined chemical, biological pharmacy, new material synthesis industry research experiment,etc.
OEM is also welcomed. We have rich experience in OEM.
Features
1.GG17 high-borosilicate glass with nice physical-chemical properties; experiment temperature -100 to 400 degree C; Resistant to strong acidic properties of materials; only touching with glass parts & PTFE, no cross-contamination.
2.Double cylinder; kettle cover is separated from kettle body. It is convenient to disassemble, clean and install.
3.Stirring adopts to mechanical sealing, it keeps higher vacuum degree among the same products in the market. It also keeps high vacuum degree when stirring.
4.Glass(PTFE)discharge valve, non-dead angle mixing, fast emptying, no residue.
5. Frequency control speed gear motor, smooth running，high torque, automatic booster, no spark, noise free, long life.
6.SUS frame and cast aluminum material kettle body support, elegant appearance, stable structure.
7.Circulating water/oil bath, high and low temperature machine can supply heating source; Cooling machine:cooling chiller，high and low temperature machine，convenient and practical
8.Scientific & innovative structure, practical, elegant appearance, domestic industry-leading.
9.Explosion proof is optional.
Specifications
Main technical datas:
| Model | (EX)S-1L |
| Power supply | AC220V |
| Stirring power(W ) | 60 1/3 Gear Motor |
| Stirring speed(rpm) | 0~600(Max.1300) |
| Motor torque | 2000g/cm |
| Reaction flask capacity | 1L |
| Note | Floor Type |
Detailed technical datas:
| Model | S-1 |
| Shaft diameter | 12mm |

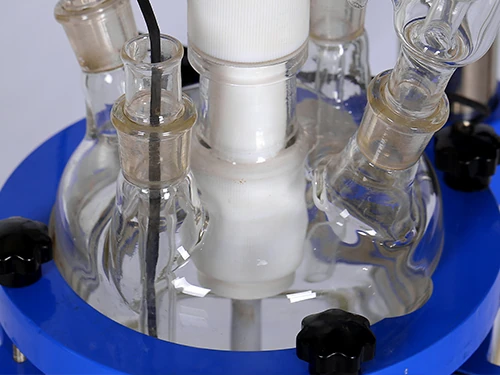

| Stirring neck（flange） | Φ33mm 50mm |
| Thermometer（taper） | 19# Φ27mm |
| Condensing neck（1-5taper10-100round） | 24# Φ34mm |
| Liquid feeding neck（taper） | Φ24mm 34mm |
| Bottom discharge neck（flange） | PTFEΦ35mm 40mm |

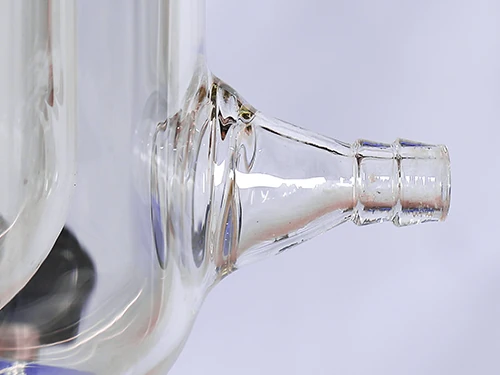

| Jacket liquid Inlet/Outlet | Φ6mm 12mm |
| Stirrer length,diameter,weight | 465mm Φ80mm 0.4kg |
| Thermowell length,diameter,weight | 280mm Φ13mm 0.03kg |
| Stirring seal ( heitht,diameter,weight) | 180mm Φ50mm 0.6kg |
| Funnel (height, diameter,weight) | 350mm Φ50mm 0.3kg |
| Condenser (length,diameter,weight) | 375mm Φ40mm 0.25kg |
| PTFE bottom discharge (height, diameter, weight) | PTFE170mm Φ68mm 3kg |
