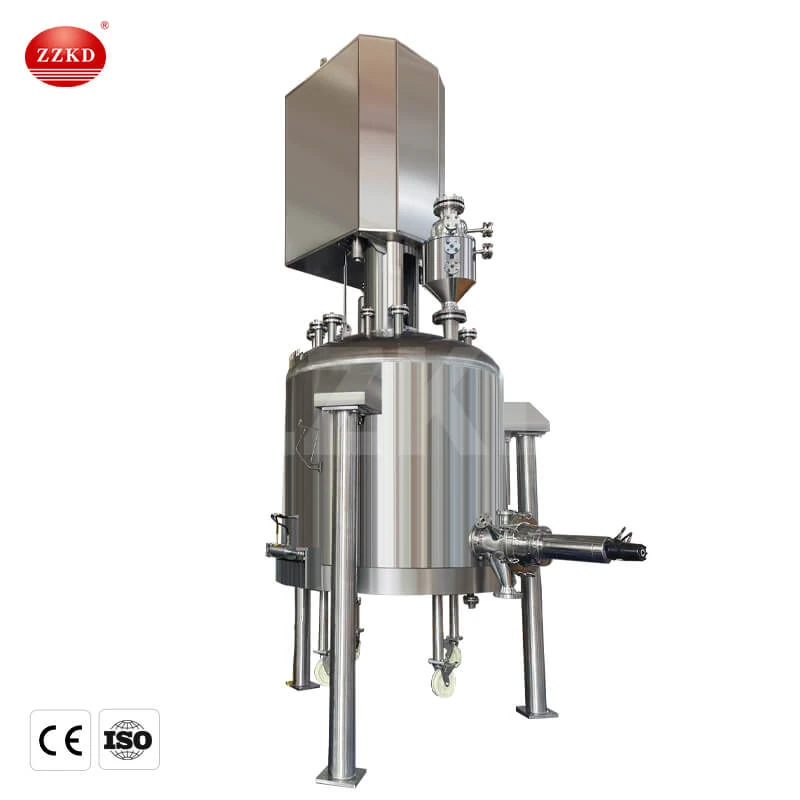

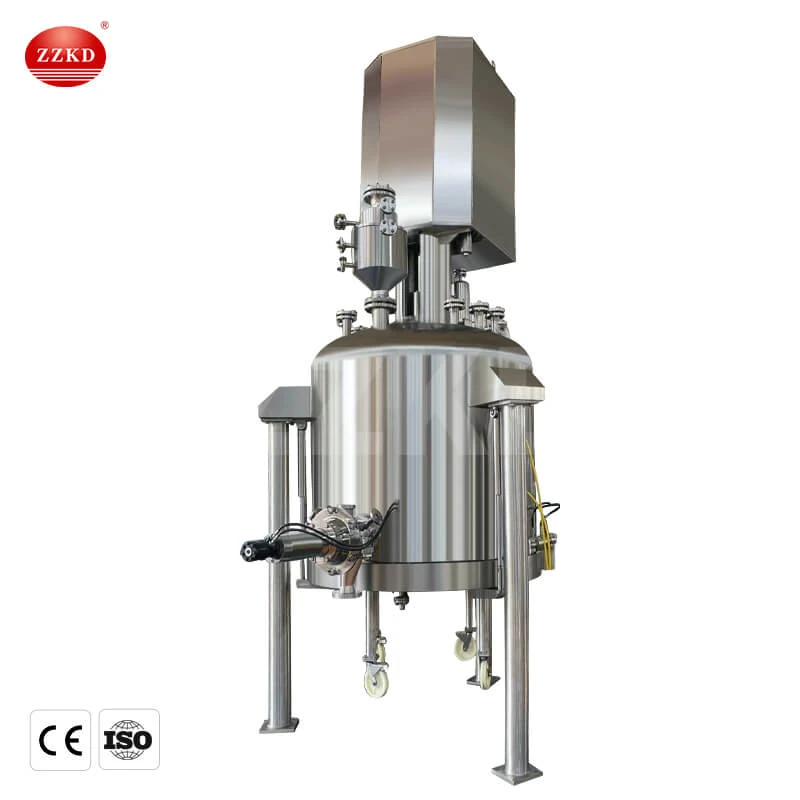

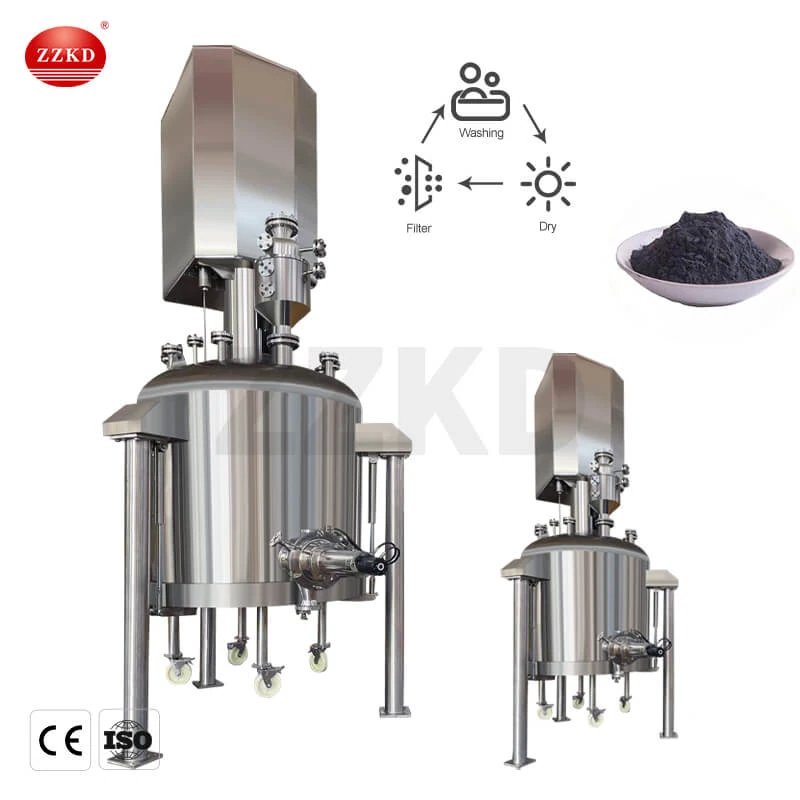

Agitated Nutsche Filter Dryer

Overview

Agitated Nutsche Filter Dryer (ANFD) is a vital piece of process equipment used in various industries, including pharmaceutical, chemical, and food processing. Combining the functionalities of a nutsche filter and a dryer, the ANFD enables efficient solid-liquid separation, cake washing, and drying processes in a single unit. In this article, we will delve into the working principles, advantages, applications, and key considerations of the Agitated Nutsche Filter Dryer, shedding light on its importance in modern industrial processes.

I. Understanding the Agitated Nutsche Filter Dryer

A. Defining the Agitated Nutsche Filter Dryer

The Agitated Nutsche Filter Dryer, also known as an ANFD, is a versatile process equipment used for solid-liquid separation, cake washing, and drying. It combines the functionality of a nutsche filter and a dryer, offering a comprehensive solution for process efficiency.

B. Working Principles of the ANFD

The ANFD operates based on the principle of pressure or vacuum filtration. The slurry is fed into the filter vessel, and the liquid is separated through the filter media, while the solids form a cake. The agitator in the ANFD aids in efficient cake formation and washing. Once separation is complete, the drying process begins using heated air or other drying methods.

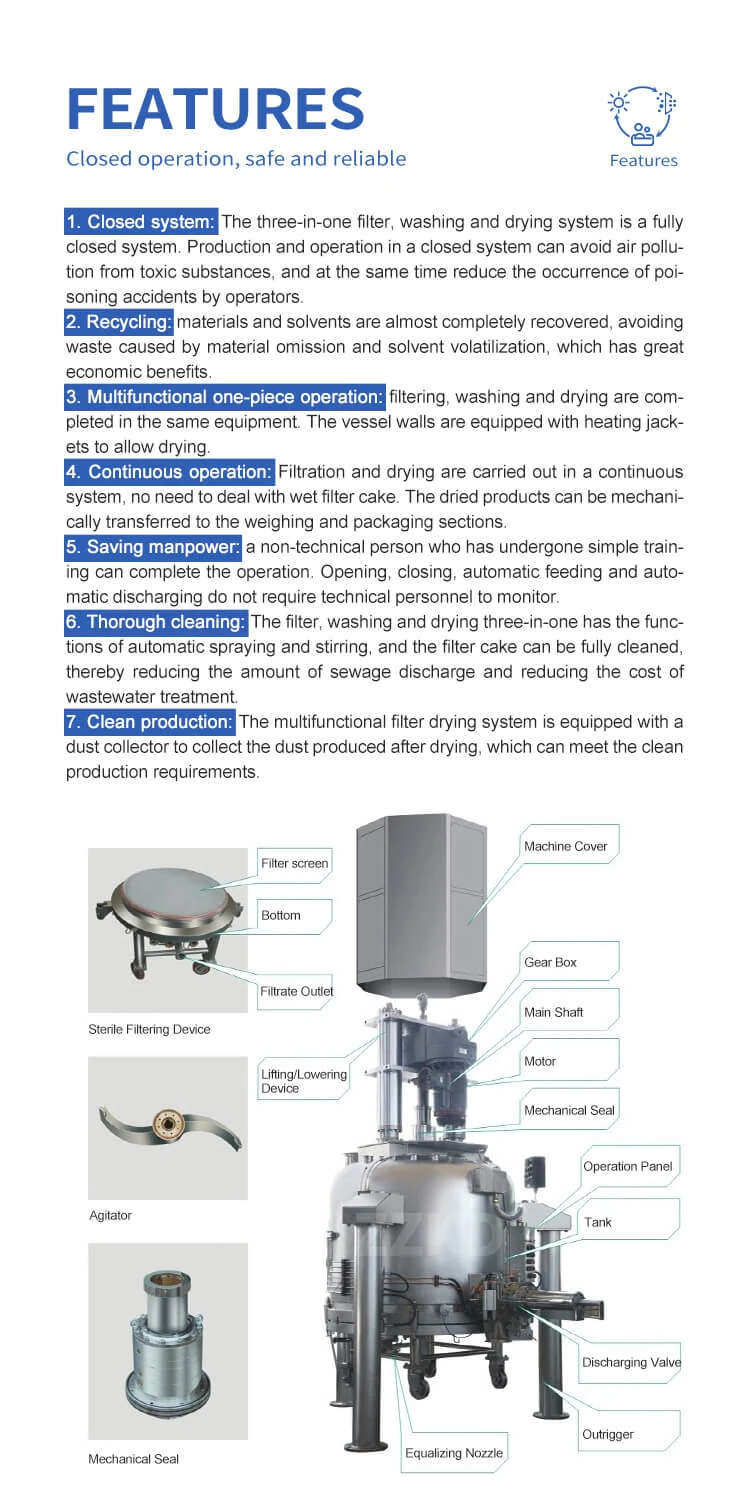

C. Components of an Agitated Nutsche Filter Dryer

An ANFD typically consists of a filter vessel, an agitator, a filter media, a cake discharge mechanism, and a drying system. The filter vessel is designed to withstand pressure or vacuum, and the agitator ensures proper mixing, cake formation, and washing.

II. The Versatility of Nutsche Filters

A. Defining a Nutsche Filter

A nutsche filter is a type of filtration equipment used for solid-liquid separation. It comprises a filter medium mounted on a perforated plate or screen. The filter medium retains the solids while allowing the liquid to pass through.

B. Different Types of Nutsche Filters

Nutsche filters come in various designs, such as plate and frame, bag filters, and cartridge filters. Each type offers specific advantages and is selected based on the nature of the process and the desired filtration requirements.

C. Advantages of Nutsche Filters

Nutsche filters provide several advantages, including high solids retention, efficient cake washing, easy cake discharge, and compatibility with various filter media. They are suitable for both batch and continuous processes.

D. Challenges and Limitations of Nutsche Filters

Despite their versatility, nutsche filters have some limitations. These include limited filtration area, potential filter media clogging, and the need for manual intervention during cake discharge. However, the integration of an agitator in the ANFD addresses some of these challenges.

III. The Role of Drying in the ANFD

A. Significance of Drying in Industrial Processes

Drying is a critical step in various industrial processes, as it removes moisture from the solids, enhances product stability, and prolongs shelf life. In the ANFD, drying follows the solid-liquid separation and cake washing steps.

B. Methods of Drying in Agitated Nutsche Filter Dryers

ANFDs employ different drying methods, such as convection drying using heated air, vacuum drying, and inert gas drying. The choice of drying method depends on the characteristics of the product and the desired moisture content.

C. Factors Affecting Drying Efficiency

Several factors influence the efficiency of drying in ANFDs, including temperature, airflow rate, product characteristics, and the design of the drying system. Proper optimization of these factors ensures effective and energy-efficient drying.

D. Benefits of Integrated Drying in ANFDs

The integration of drying functionality in the ANFD offers several benefits. It eliminates the need for a separate drying unit, reduces process steps and time, minimizes product handling, and enhances overall process efficiency.

Features

IV. Applications of Agitated Nutsche Filter Dryers

A. Pharmaceutical Industry

ANFDs find extensive use in the pharmaceutical industry for processes such as active pharmaceutical ingredient (API) filtration, solvent recovery, crystallization, and sterile filtration. The ANFD's ability to handle hazardous materials and achieve high-quality product output makes it a preferred choice.

B. Chemical Industry

In the chemical industry, ANFDs are employed for applications like catalyst recovery, filtration of chemical intermediates, pigments, and dyes. The ANFD's versatility and ability to handle corrosive and reactive materials make it well-suited for various chemical processes.

C. Food Processing Industry

ANFDs play a crucial role in the food processing industry, enabling the separation of solids from liquid food products, filtration of food additives, and concentration of juices. The ANFD's compliance with food safety standards and hygienic design make it suitable for food-related applications.

D. Other Industrial Sectors

ANFDs also find applications in sectors such as biotechnology, wastewater treatment, and specialty chemicals. Their ability to handle complex process requirements, versatility, and ease of operation contribute to their widespread use.

V. Advantages of Agitated Nutsche Filter Dryers

A. Improved Process Efficiency

The integration of solid-liquid separation and drying in a single unit reduces process steps, saves time, and improves overall efficiency. ANFDs minimize product handling, eliminate the need for additional equipment, and enhance process control.

B. Reduced Footprint and Energy Consumption

By combining filtration and drying functionalities, ANFDs reduce the equipment footprint and energy consumption. The elimination of transfer operations between separate units results in energy and cost savings.

C. Enhanced Product Quality

ANFDs enable thorough cake washing, leading to improved product quality by minimizing impurities. The integrated drying process ensures precise control over the final moisture content, enhancing product stability and shelf life.

D. Operational Flexibility

ANFDs offer operational flexibility by accommodating different process requirements, various filter media, and drying methods. Their versatility allows for seamless adaptation to changing production needs and diverse applications.

The Agitated Nutsche Filter Dryer plays a pivotal role in achieving efficient solid-liquid separation, cake washing, and drying processes in various industrial applications. By combining the functionalities of a nutsche filter and a dryer, the ANFD offers numerous advantages, such as improved process efficiency, reduced energy consumption, and enhanced product quality. However, selecting the right ANFD and considering factors such as material compatibility, process requirements, safety considerations, and maintenance is crucial for optimal performance. As industries continue to evolve, the Agitated Nutsche Filter Dryer remains an indispensable asset, meeting the demanding needs of modern industrial processes.
