Overview

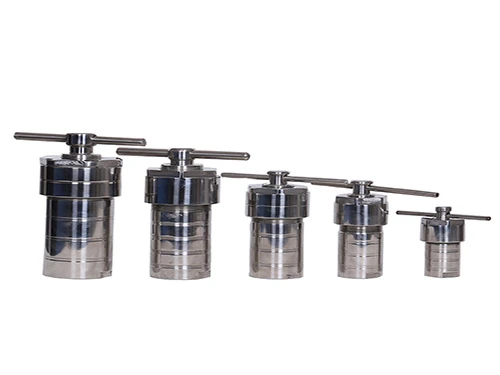

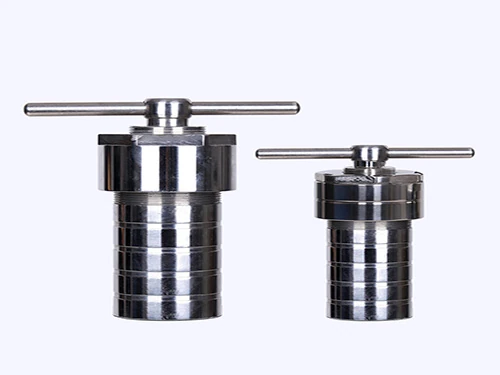

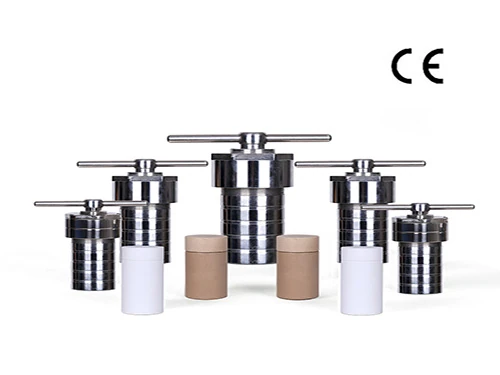

KH series hydrothermal synthesis reactor is used to make new synthetic chemicals under a certain temperature and pressure. It is widely used in new materials, energy, environmental engineering and other fields of scientific research and experiments, it is a small commonly used reactor used in teaching and scientific research.
Features
Main Characteristic:
1. Using high-quality 0Cr18Ni9Ti nonmagnetic stainless steel.
2. The kettle body and the cover are sealed by a durable, reliable sealing structure, the sealing effect could be long-term stable without leakage.

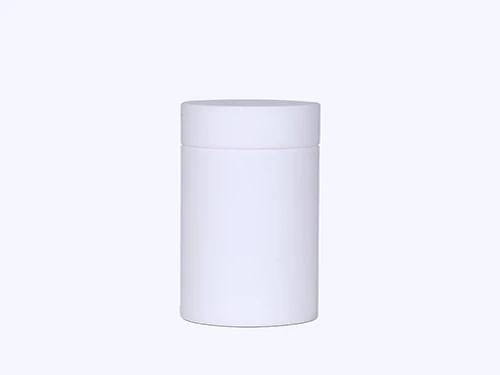

3. Complete PTFE material, with excellent acid resistance and alkali resistance.
Specifications
Main Technical Details:
(1) Working Temperature: ≤230°C(
(2) Working Pressure: ≤3MPa (Pressure Gauge)
(3) Heating and Cooling Rate: ≤5°C/min
(4) Specification: 25ml, 50ml, 100ml, 150ml, 200ml, 250ml. Also we can offer customized size according to user'sneeds.
Main Technical Details:
(1) Working Temperature: ≤280°C(
(2) Working Pressure: ≤3MPa (Pressure Gauge)
(3) Heating and Cooling Rate: ≤5°C/min
(4) Specification: 25ml, 50ml, 100ml, 150ml, 200ml, 250ml. Also we can offer customized size according to user'sneeds.
Main technical data:
|
Hydrothermal synthesis reactor |
|||
|
Model |
KH-25 |
KH-50 |
KH-100 |
|
Material |
Shell made of high quality stainless steel |
||
|
Capacity |
25ml |
50ml |
100ml |
|
Note |
Safe temperature 200℃, The top pressure is not more than 3MPa |
||
