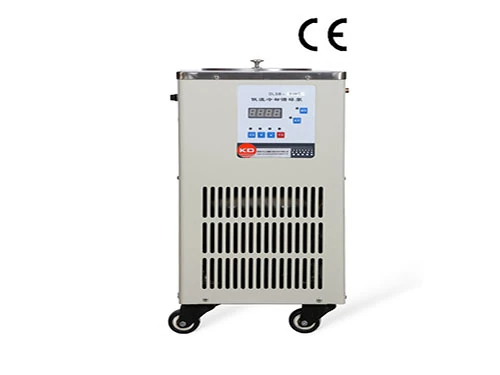

Low Temperature Cooling Liquid Circulating Pump
Low-temperature circulating pump also know as Low temperature cooling water / liquid circulation pump. This device adopt mechanical refrigeration, the main function is provide low temperature liquid , low temperature water bath . It can also connect with rotary evaporator, vacuum freeze drying oven , cycle water vacuum pump , magnetic stirrer and so on , to achieve the chemical reaction or drug store under low temperature condition.
| Send an E-mail to us! | |
Follow Us:
|
|
 ( Click this button to inquiry ) |
|
PRODUCTS
- Glass Reactor Series
- Rotary Evaporator Series
- Water Vacuum Pump Series
- High and Low Temperature Cycling
- Cooling Liquid Circulating Pump Series
- Circulating Water or Oil Bath Series
- Drying Oven
- Hydrothermal Synthesis Reactor
- Microwave Chemical Reactor
- High Pressure Reactor Series
- Short Path Distillation
- Heating Mantle
https://www.facebook.com/kdinstrument
Whatsapp: +8615036470528
E-mail: [email protected]
Address: Room 104, building 3, Jiatu Industry Park, Hongsong road accrossing lianhua street, High-tech District, Zhengzhou city, Henan Province.
Brief introduction:
Low-temperature circulating pump also know as Low temperature cooling water / liquid circulation pump. This device adopt mechanical refrigeration, the main function is provide low temperature liquid , low temperature water bath . It can also connect with rotary evaporator, vacuum freeze drying oven , cycle water vacuum pump , magnetic stirrer and so on , to achieve the chemical reaction or drug store under low temperature condition.
Large cryogenic cooling liquid circulating pump is constant flow, constant voltage. Used for purification of high purity metals, rare element, environment experiment and magnetron sputtering, vacuum coating and other large equipment, and also can meet the cooling demand of electron microscopy, electron probe, ultra high vacuum sputtering apparatus, X-ray machine, laser and accelerate the electric light those high value equipment. Cryogenic cooling liquid circulating pump is particularly suitable for the chemistry, biology, physics laboratory work under normal conditions or need to maintain a low temperature. It is a necessary lab equipment for medicine, chemical industry, food industry, metallurgical industry, universities, scientific research, genetic engineering, polymer engineering and so on . (Can be customized large capacity according to user needs ).
Product features
(1)Air-cooled and hermetically sealed compressor units (import) with dependable quality;
(2)The dedicated and high-quality relays, protective devices and capacitors of the refrigerating units;

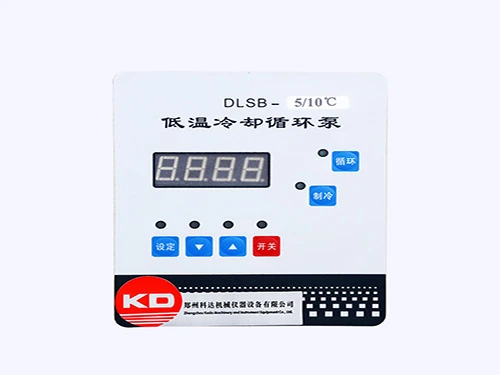

(3)Digital Read Out of temperature and microprocessor controller for temperature, simple and easier to see;
(4)It can be matched with a variety of instruments (rotary evaporators, fermentation tanks, chemical reactors, freeze-drying equipments, pharmaceutical reactors, etc.);
(5)Bigger cooling capacity and faster cooling speed, which have greatly improved the working efficiency;
(6)It can effectively ensure the normal use of all kinds of precision instruments under the working conditions such as lacking water, the poor quality、pressure and temperature of water, and high temperature;
(7)The flow of circulating pump can be either adjusted or customized, which has greatly met the actual needs of different customers;
(8) All models of this machine can be matched reasonably between the low temperature and the cooling capacity or capacity basing on the requirements of customers.
Technical Parameters
Keda low-temperature pump types classification
According to the volume of cryogenic cooling bath circulation pump divided into : 5L、10L、20L、30L、40L、50L、60L、80L、100L.
Each volume according to the lowest temperature can divide into : -10℃、-20℃、-25℃ 、-30℃、-40℃、-60℃、 -80℃、-120℃.
Main technical data:
| Model | DLSB-5/10 | DLSB-5/20 | DLSB-5/25 | DLSB-5/30 | DLSB-5/40 | DLSB-5/60 | DLSB-5/80 | DLSB-5/120 |
| Bath volume(L) | 5L | |||||||
| lowest temp (°C) | -15 | -24 | -27 | -33 | -42 | -62 | -82 | -123 |
| Cooling capacity (W) | 1328-319 | 1328-319 | 1894-447 | 2733-627 | 2036-602 | 2036-330 | 2036-180 | 3888-160 |
| Flow (L/min) | 20L/min | |||||||
| Lift(m) | 4-6m | |||||||
| coolant temp (°C) | －10℃ | －20℃ | －25℃ | －30℃ | －40℃ | －60℃ | －80℃ | －120℃ |
| Temp stability(°C) | ±0.2 | |||||||
| Power Supply(V/Hz) | 220 | 220 | 220 | 220 | 220 | 220/380 | 220/380 | 220/380 |
| Ambient temp（℃） | 25 | |||||||
| Ambient humidity（％） | 60-80 Ventilation | |||||||
| Size(mm) | 500*370*540 | 500*370*540 | 545*370*640 | 545*370*640 | 600*410*670 | 680*500*780 | 700*650*900 | 950*710*940 |
